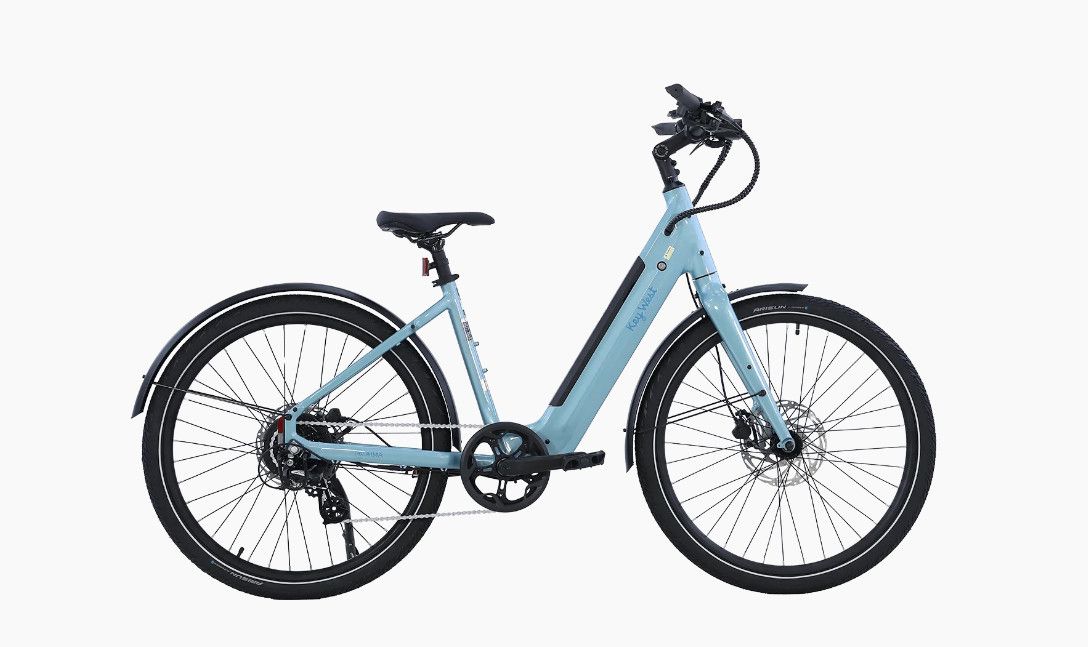

AIMA Key West E-Bike Blue / Medium

Frame: Unique Lightweight Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing, Integrated bearings, 100mm BSA, Fully Integrated rear Dropouts with LED Rear light / Brake / Turn Signal lights (remotely controled)

Fork: One-piece Lightweight Fork, 1-1/8” Threadless

Stem: Forged Alloy, Adjustable Angle, 1-1/8” Threadless, with Front Light Mount

Handlebar: City Handlebar, Riser, Ø31,8mm, Width: 680mm

Grips: Comfort Ergo, Bolt-On

Seatpost: Alloy, Ø30.4mm Quick Release clamp

Saddle: Comfort

Shifters: Shimano Acera ST-M315, Rapidfire, 8 Speeds

Derailleur: Shimano Altus RD-M310, with Protecting Cage

Chainring: Direct Mount, Splined alloy spider, 46T

Cassette: Shimano HG, Megarange 12-32T

Chain: PYC, 1/2” x 3/32”

Pedals: Alloy, 9/16’’

Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor

Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors

Rims: 27.5’’, 36H, Double Wall Disc Profile, Alloy, Schrader

Hubs: Front: Alloy, 100mm, Bolt-On, 6-Bolts Disc Mount, Rear: (See Motor)

Spokes: 12G Stainless Steel, Black

Tires: 27.5 x 2.1’’, Reflective Side Strips, E-Bike Rated Casing

Driving Lights: (Front): Stem-mounted white driving light, 600 lumens (Rear): Integrated red driving light / Active braking and Yellow turning signal lights (remotely controlled)

Accessories: Fenders, Direct Mount Alloy Kickstand

Listed Weight: 55 lbs (25 kg)

Max Payload: 320 lbs (145 kg)

Motor: Bafang G210 48V Brushless Rear Hub, 500W, 36H*12G

Battery: Bafang BT F304, Semi-Integrated, 12.8Ah (614Wh) Lithium-ion

Display: Bafang DP C010, Bluetooth Connected, Color TFT LCD, Buit-in Navigation System

Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups

Throttle: On Demand Thumb Press Button

Control Pad: Power / PAS level

Driving Lights: Blinkers Turn Signal Lights / Electronic Horn

Charger: AIMA 48V 3A Fast Charge
