Tern HSD P10
$6 999.00
Pre-order
Don't see your preferred color? Contact us for a special order 902-407-4222
Color
Out of stock, available for pre-order
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

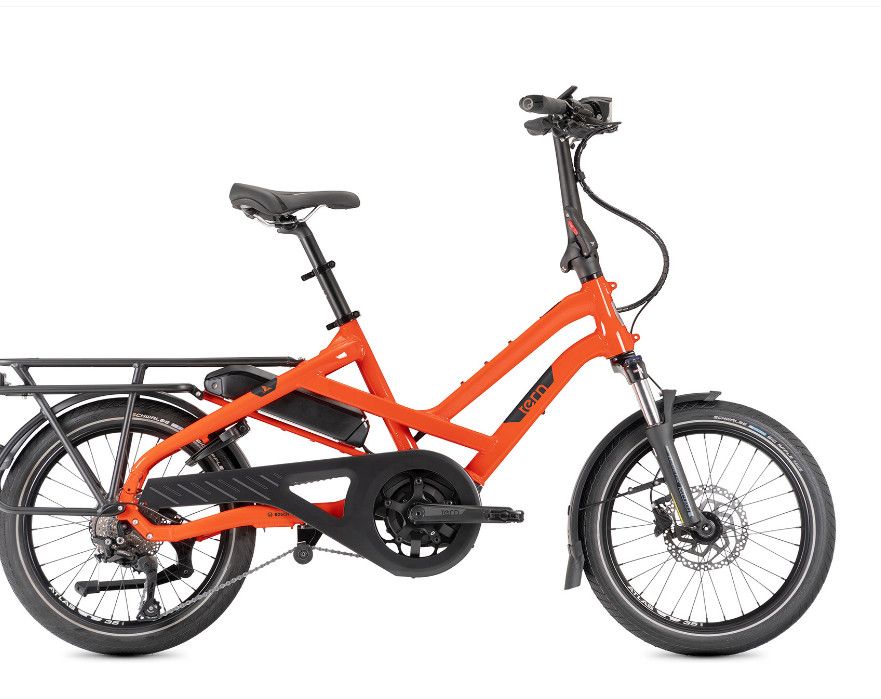

Tern HSD P10
Product Details
The brand new Tern HSD P10 electric bike, powered by the new Bosch Smart System, is perfect for urban transportation. From transporting kids to school to trips to the market, the HSD P10 offers the ultimate alternative to automobiles.
Indeed, size doesn't matter when it comes to the Tern HSD P10. This versatile bike can be ridden by anyone with a height ranging from 4'11" to 6'5", making it an ideal choice for shared transportation.
Whether you're at the market or running errands, the new P10 will take you where you need to go. Its compact size and ability to fold down even smaller make it easy to carry along.
What makes it a P10?
- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- 1x10-speed Shimano Deore groupset with trigger shifter
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Key Features:
- Large Electric Cargo Bike Capacity: Looking for a high-capacity bike that can handle anything? The Tern HSD P10 is designed with a unique frame shape and ultra-strong aluminum frame, capable of supporting up to 180 Kg (397 lbs).
- Award-winning Bosch Performance Smart System: Experience fantastic smooth power delivery and efficiency with the Bosch Smart System. Each HSD comes standard with the Bosch 545 Wh lithium-ion battery, providing a range of up to 121 km (76 miles) between recharges.
- Premium-quality Components: The Tern HSD P10 is equipped with top-of-the-line components. Enjoy a collapsible handlebar for easy fitting into tight spaces, a modern frame design for superior strength, and features such as a 1 x 10 Shimano Deore derailleur, Shimano hydraulic disc brakes, Schwalbe Big Apple tires with wide double-joined rims, integrated lights, and a new heavy-duty rear carrier rack.
Practical Tern Accessories:
The Tern HSD P10 is the perfect choice for your urban lifestyle. Customize your bike with cargo racks, child carriers, and pannier bags to carry everything you need on your ride. Add a padded seat for maximum passenger comfort, no matter the distance.
Contact us today for more information on the Tern HSD P10 and make it your ultimate urban companion.
General Info
Speeds:
1 x 10
Weight:
27.6 kg (60.8 lb)
Gear Inches:
30 - 97" (2.36 - 7.72 m)
Folding Size:
165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
Folding Time:
5 seconds
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
54.5 - 62.5 cm (21.5 - 24.6 in)
Distance: Saddle to Pedal:
70 - 102.5 cm (27.6 - 40.4 in)
Suggested Rider Height:
150 - 195 cm (59.1 - 76.8 in)
Max Gross Vehicle Weight:
180 kg (396.8 lb)
Max Rider Weight:
120 kg (264.6 lb)
Frame
Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern Upright by Velo
Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Tektro, hydraulic disc, 180 mm rotor
Rear Brake: Tektro, hydraulic disc, 160 mm rotor
Brake Levers: Tektro, hydraulic disc
Brake Cable & Housing: Tektro, hydraulic disc
Wheels
Front Wheel: Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings
Rear Hub: Novatec, sealed cartridge bearing, disc
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, wide 35 mm
Tires: Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s): Shimano Deore, 1 x 10 spd, trigger
Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern HSD custom
Cassette/Freewheel: Shimano 11-36T, 10 spd
Bottom Bracket: Motor integrated
Chain: KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals: Urban with non-slip surface
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor: Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 545
Display: Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Range: 545 Wh: 51-121 km (32-76 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell: Pitch Plus, brass
Chainguard: Tern Custom, full chain cover
Kickstand: Ursus, rear mount
Luggage Socket: Combo Mount
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans H-Trace, for eBike
Fenders: SKS, stainless hardware
Rack(s): Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
Frame Lock: ABUS, keyed-alike with Bosch battery
